Low Maintenance,
High Returns

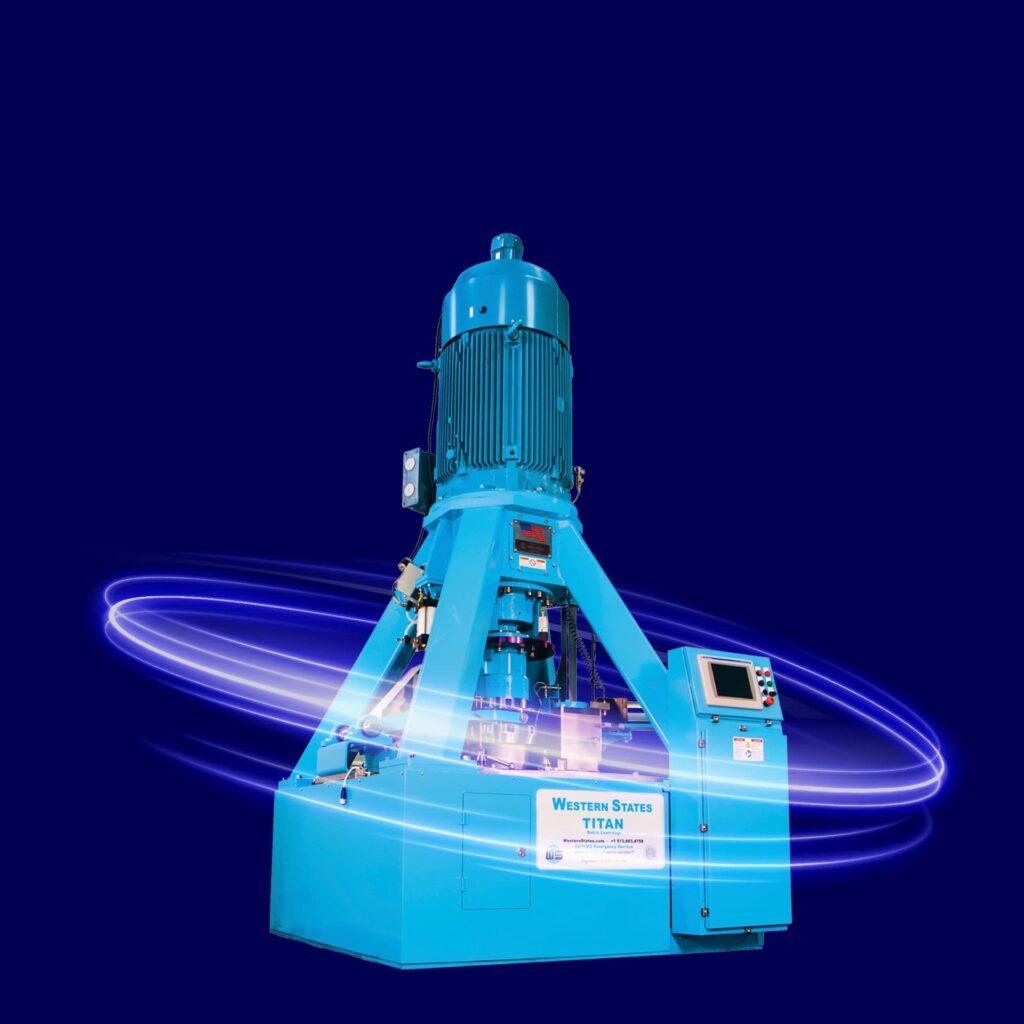

The TITAN Batch Centrifugal is designed to be a low-maintenance, efficient, and cost-effective solution while providing a high return on investment for the end-user in the sugar industry. Maintenance of this batch type centrifugal machine is reduced by minimizing the number of moving parts and the use of high-strength alloys and non-metallic, food-grade components, optimized for sugar cane centrifugation. The latest variable frequency drive technology and PLC control system ensure efficient operation with low power consumption. The TITAN Batch Centrifugal is available in capacities from 1400 kg to 2400 kg.
DESIGN FEATURES
OF THE TITAN
Engineering Excellence & Durability
- Basket with long service life
Fully perforated basket with 2205 duplex stainless steel side sheet, 316 stainless steel bottom plate, and basket cap for fast purging, long life, and high safety.
- Balanced basket
Dynamically and inspected with X-rays to verify its structural integrity.
- Operational stability
Solid-state gyration and vibration monitoring to ensure operational stability.
- Emergency braking
Disk brake for emergency stopping, enhancing safety.
- Quality control
Each unit fully tested and inspected before shipping.
- Purging efficiency
Largest open area of baskets in the market for unsurpassed purging efficiency.
Smart Control &
Operational Precision

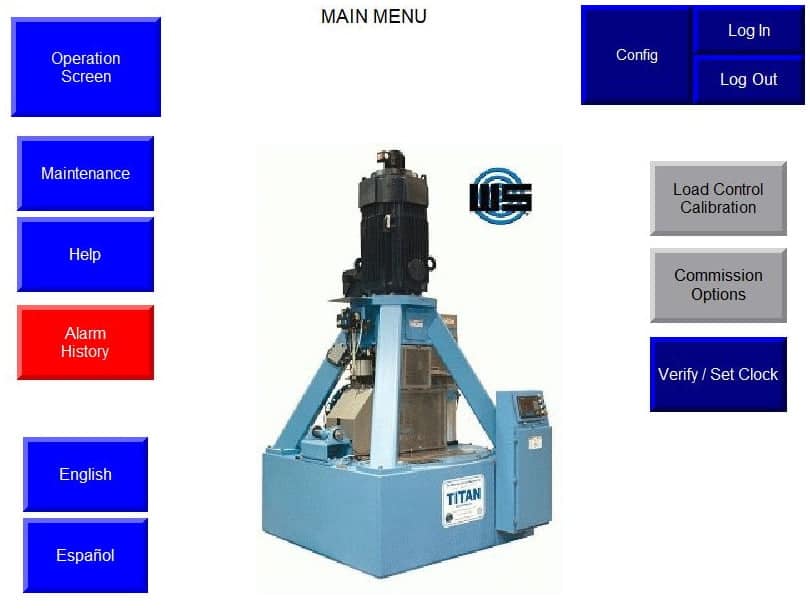

- Touch-screen
Full-color touch-screen interface with maintenance diagnostics, reminders, and PLC controls for precise cycle management.
- Maximum load
Electronic control of the feed valve with sequenced closing for maximum loading per cycle.
- Anti-drip valve
Enclosed feed system with anti-drip valve to prevent contamination.
- Variable frequency drives
Variable frequency drive (VFD) and motor compatibility for smooth, energy-efficient operation (no encoder required).
- Efficient download
Totally unobstructed downward-opening basket valve and spring-loaded discharger plow for efficient unloading and screen protection.
Sustainability & Cost Efficiency
- Low environmental impact
Conserves energy and wash water during operation, reducing environmental footprint.
- Added value
Lowest energy cost per ton of massecuite for long-term savings.
- Operational stability
Optional syrup separation for molasses classification, adding value to byproducts.
- Energy saving
Compact VFD design and optimized components minimize power consumption.
TITAN

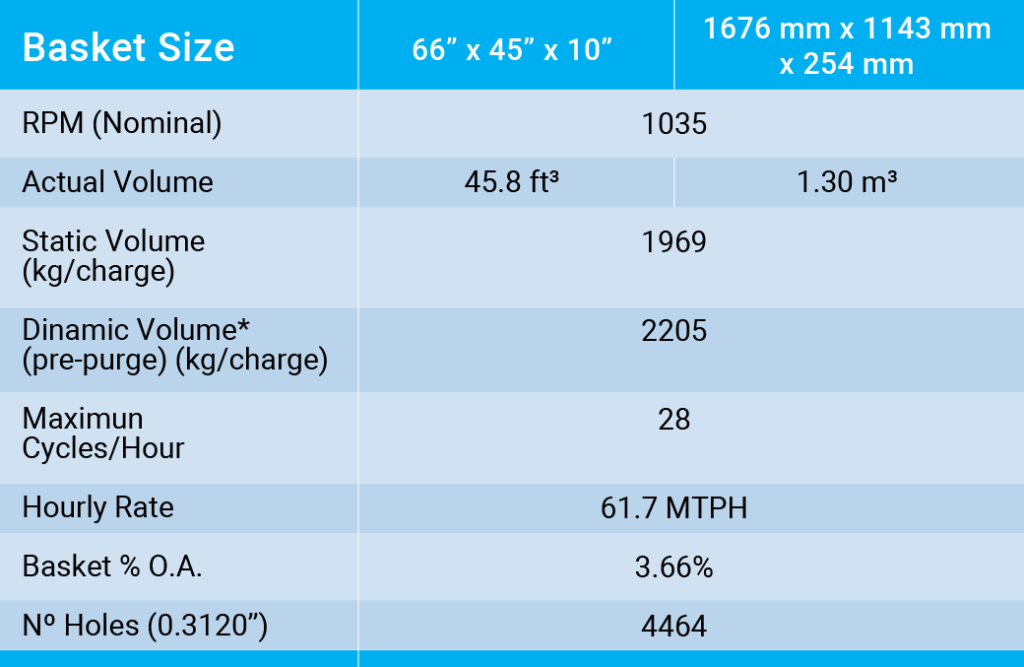

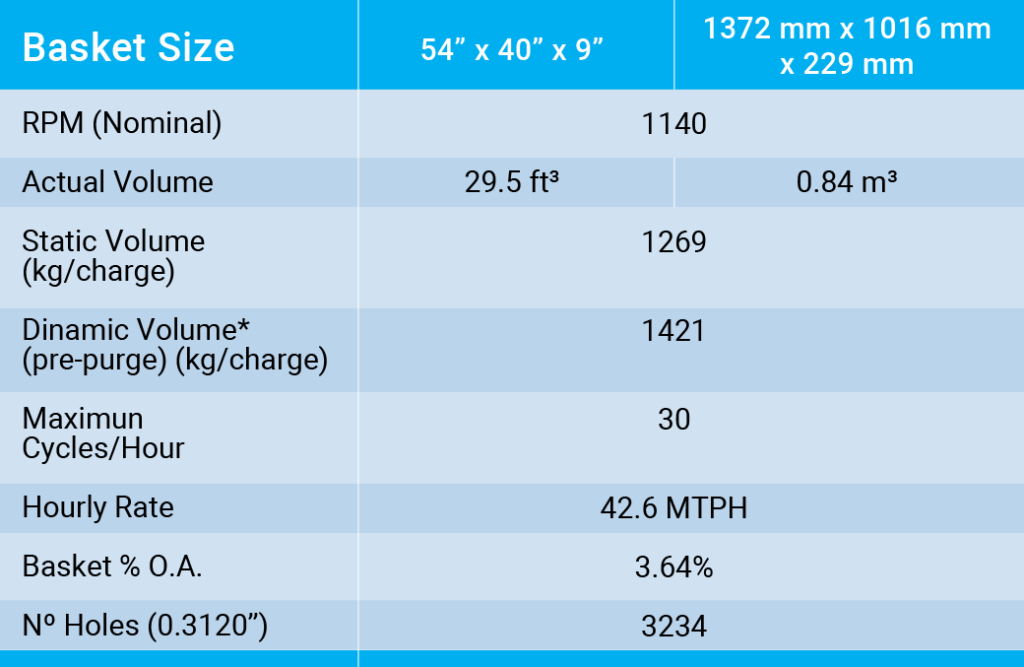

TECHNICAL DATA
*12% NOTES: Final results will depend on machine options, type of sugar, process conditions and quality of massecuite
