WSB-40 Centrifuge for Cannabinoid Extraction

The WSB-40 is designed for the maximum extraction of cannabinoids and is suitable for mid to large scale production volumes.  This machine can handle up to 40 pounds per 10-to-20-minute cycle and boasts 98% cannabinoid removal.

Technical Specifications: WSB-40

General

  • 1561 RPM
  • 900 Gs
  • 133 liter volumetric capacity
  • 40 lb maximum biomass load
  • 7.2 ft 3 flood volume
  • -40°F Minimum operating temperature, 104°F Maximum operating temperature. (32°F to 104°F Ambient)

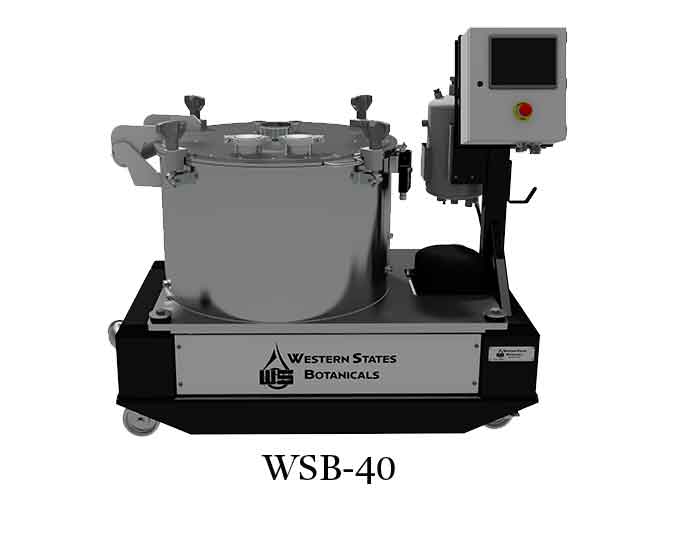

Western States WSB-40 Botanical Centrifuge

Curb

  • 304L stainless steel construction with internal vacuum/fluid jacket that covers the entire height of the curb
  • Vacuum/fluid jacket supplied with (2) 1/2” NPT connections
  • 1-1/4” inertia pad curb floor includes a 3” sanitary fitting for effluent outlet
  • Jacket pressure limits are 0-15 PSI

PLC

  • Allen-Bradley CompactLogix, 24 VDC, Ethernet, located in tethered drive enclosure

HMI

  • 7” Panelview Plus 7, 24 VDC, ethernet, mounted in NEMA 4X enclosure on machine frame
  • CL.1 DIV.2

External Finish

  • External stainless steel surfaces 39 Ra or better
  • Carbon steel surfaces powder coated per RAL 9005 satin

Internal Finish

  • All internal surfaces stainless steel with 32 Ra finish or better
